St Catherine of Siena: The Architecture and Interior

st caths3

Church exterior

Art historian Sir Nikolaus Pevsner describes the church as having a “humble 14th-century tower, roughcast, with a pyramidal cap; the rest from the outside looks all 19th century”.

The tower, on the western end, was built in the early 14th century and has a pair of angle-buttresses at each outside corner. The northernmost buttress is taller than the rest, having two stages rather than one. The west doorway has a very weathered, pointed arch. Above this door, there is a small square-headed window on the first stage, with a single trefoil-headed window above this on the second stage. There were originally similar windows at the second stage on the south and north sides, but these have since been filled in.

On the highest stage, there are two-light bell-openings with pointed trefoil heads on the south, west, and north sides, with a plain square window on the east. The roof of the tower is now pyramidal, with overhanging eaves, although a drawing from 1795 indicates that the pitch was steeper. The tower has been rendered on all four faces, other than the lower section on the north face which still shows malmstone block and flint facing.

cocking 2

The north aisle, dressed with knapped flint, dates from the 1865 extensions, other than the eastern end which was extended in 1896 to accommodate the vestry.

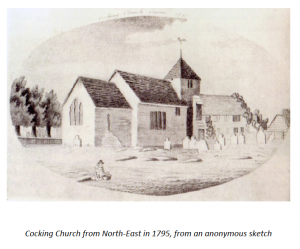

The drawing of the church from 1795 shows the church before the north aisle was added; there was then a square four-light window in the north wall of the nave. The drawing also shows that there was a smaller two-light window high in the north-west corner, which was connected to the minstrels’ gallery at the western end of the church.

At the eastern end of the church is the chancel. This was reconstructed in 1896, with a new east window being installed and the whole faced with ashlar. The 1795 drawing shows some herringbone brickwork, indicating that the original chancel dates from the 11th century.

The south aisle, which dates from the early 14th-century extension, is also dressed with knapped flint. The south aisle has had buttresses added at each end at a later date.

The present main entrance to the church is through the porch on the south side. The porch is built of timber on a stone base and was erected as part of the 1865 extensions and improvements.

Church interior

church interiorThe church now has a nave flanked by the south and north aisles, with the chancel containing the main altar. The south aisle contains a second altar in the Lady Chapel.

The south aisle

The south aisle dates from the early 14th century. At the western end is the Lady Chapel with a small altar table, which is used for quiet prayer and contemplation. Behind the altar table is the east window; this has two lights with pointed trefoil heads and a diamond-shaped quatrefoil light at the top; the interior splays of the window have shallow cinquefoil-headed niches.

On the south wall, to the right of the altar are the aumbry, behind a wooden door in a square stone opening, and a triangle-headed piscina; these both date from the construction of the aisle in the early 14th century. The aumbry was used to store chalices and other vessels, as well as for the reserved sacrament, while the piscina was used for washing the communion vessels.

The south window has two trefoil-headed lights, under a square head. The south doorway is from the 19th century, with a pointed arch. The west window was altered in 1865 and also has two trefoil-headed lights, under a quatrefoil.

The font

The font is situated in the south aisle to the west of the south door. This is a plain, tub font with slightly bowed sides, resembling a chalice. It has a cylindrical stem and base, standing on two square plinths. The rim is chamfered and has slight damage.

Pevsner dates the font to the 12th century, although the base is a later medieval addition, although others claim that the font is Saxon and came from the earlier Saxon church.

The nave

The nave is 30ft 11in long by 18ft 5in wide at the east end and 18ft at the west. It is separated from the south aisle by a two-bay arcade, built into the existing walls in the early 14th century, with a single octagonal pier and wide double-chamfered arches. The pier has a square base and an “undersized” moulded impost, and is slightly higher than the responds, which are square, with the arches “dying away” into them at a low level.

Above the western arch is the remains of an 11th-century window. This had been blocked off when the south aisle and arches were constructed in the early 14th century and was restored in 1896. On the south side, on what was originally the exterior wall, it has an arched lintel and jambs of two very wide blocks each and no sill. The aperture is about 9in wide and 2ft high. The north face is widely splayed, with a round head of three long voussoirs; the window is about 3ft 5in high to the springing.

wall paintingOn the eastern splay of the window are remnants of a wall painting, which have been dated to 1220. The painting is part of the Christmas story and shows the shepherds with a dog looking up to the Star of Bethlehem. Above them are the arms of an angel pointing to the star and holding a palm branch.

The aisle is separated from the north aisle by a three-bay arcade, built in 1865. The two piers are octagonal as are the responds, and being closer together than those on the south side, the arches have a much more pronounced point.

The western door to the nave, which now permits entry to the tower, is probably the original west door of the church.

It has a plain pointed head within a semi-elliptic archway.

The nave roof is mostly modern although the three tie-beams are older, possibly 11th- or 12th-century. The westernmost tie-beam may once have supported a bell-cote before the tower was built in the early 14th century.

The chancel

The chancel is 15ft long and 14ft wide. The chancel arch dates to the 11th century and is the oldest part of the church still visible. The head is of two rings, with plaster or rubble filling. It has 14 small, variously sized voussoirs and has become slightly flattened as a result of subsidence with the jambs not quite vertical. The jambs are square-cut, each having five upright and flat slabs of similar heights, two per course. At the top of each upright, there is a 7in plain chamfered impost. The arch is 6ft 6in to the imposts; it is 8ft 6in wide and 11ft 4in to the crown. The jambs are 2ft 5in thick. The chancel was separated from the nave by a rood screen but this has now been removed.

Behind the altar is the east window of the church. The original from the 14th century was removed during the repairs to the chancel in 1896 and was stored in the garden of the rectory in Bell Lane. The new window was set about 2ft 0in higher than the original, to accommodate a reredos (since removed) and is thus unusually high. The present window has three trefoil-headed lights under a pointed arch.

On both the north and south walls of the chancel can be seen the remains of the original Norman windows, which were exposed during the 1896 improvements. In each case, three of the western jamb stones and two voussoirs are now visible. The present chancel windows are slightly to the west of the originals and are 14th-century single light windows with ogee trefoil heads.

Chancel arch

At the western end of the south wall of the chancel, there is a second lower window which dates from the 13th century, with a pointed trefoil head and rebated jambs. This contains the only stained glass in the church, the work of James Powell, installed in 1896 to commemorate the Revd. Richard Ash. The image represents Richard de Wych who was Bishop of Chichester from 1244 to 1253, although the face is that of Richard Durnford, the Bishop of the Diocese who had recently died. The inscription below the window reads:

‘In memory of Richard Robert Drummond Ash, M.A. rector of this parish for 28 years A.D. 1860–1888. He entered into rest June 14, 1896 aged 67. In the same year, when the chancel was restored, this window was dedicated by his friends and parishioners’.

On the northern wall of the chancel is the door to the vestry. This dates from 1896 and has a plain pointed arch. To the right of this, is the Easter sepulchre. This has a large central finial above the inner trefoil-headed arch, with smaller pinnacles at the sides emerging from carved heads. This dates from about 1300 and is possibly the oldest in Sussex.

easter sepulchre

Easter Sepulchre (left)

Set in the north-east corner of the chancel is the remains of an 11th-century gravestone which was discovered in the foundations of the chancel north wall during the 1896 re-building. It is 2ft 0in wide and 2ft 5in tall. On its face is a Y-shaped cross within a rectangular border.

On the east wall of the chancel is an aumbry, behind a brass door engraved with the cross. Above this is a lit candle indicating that the Blessed Sacrament is preserved in the aumbry. On the altar table is the altar cross which is made of iron, gilded and inlaid with mosaic and mother of pearl; this dates from 1896. The earlier altar cross is now above the western door in the nave.

On the south wall of the chancel is a triangle-headed piscina dating from the early 14th century; this was uncovered during the 1896 restoration.

Also in the chancel are grave stones for three incumbents of the parish. On the east wall is the grave stone to James Maidlow, who died in 1791 aged 62. He was vicar for 24 years and the Latin text claims that “he was happily endowed with a very witty temperament”.

On the south wall are the grave stones to Melmoth Skynner, who was also vicar for 24 years and died in 1822 at the age of 90, while the other, with a Latin inscription, is in memory of James Barker, who was vicar for 28 years and also Archdeacon of Chichester. He died in 1736 aged 71. According to the Latin inscription:

“He was content with his lot, yet not unworthy of a better one”.

The north aisle

The north aisle, which is separated from the nave by the three-bay arcade, was added in 1865. On the north wall, there are three two-light windows with pointed trefoil heads and a similar taller window in the west wall.

At the eastern end is situated the small church organ built by Bishops of London. This has a single keyboard and three stops, but over 150 pipes.

The tower and bells

The tower is at the western end of the church and was added in the early 14th century. The church has three bells. The oldest (No. 2) was cast in the bell foundry at Wokingham in 1420 and is inscribed “Sancte Johannis Ora Pro Nobis”. The bell has a broad face, with a cross of four fleur de lys, surmounted by a crown and coin.

Bell No. 1, which is similar in design to bell No. 2, was cast by Roger Landen of Wokingham in 1448 and is inscribed “Sancte Caterina Ora Pro Nobis”. The third bell was hung in 1616 and was made by Thomas Wakefield of Chichester. This is inscribed “1W RK 1616 T & W”.
